China weighing balance manufacturers- WANT Balance Instrument Co., Ltd.

Your location:Home Products Electronic Balance 0.01mg Balance micro analytical balance 200g 51g 0.01mg 0.1mg Double range

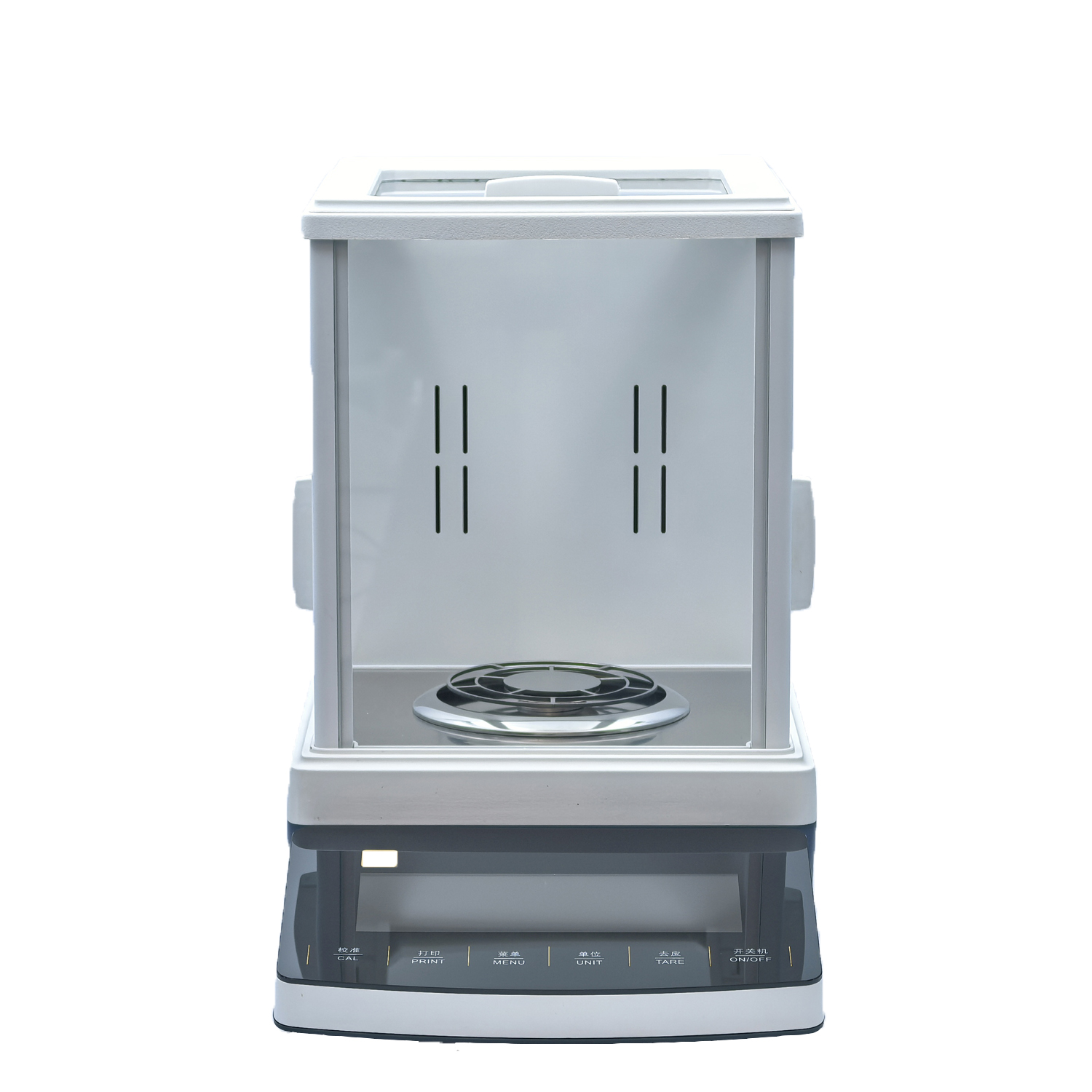

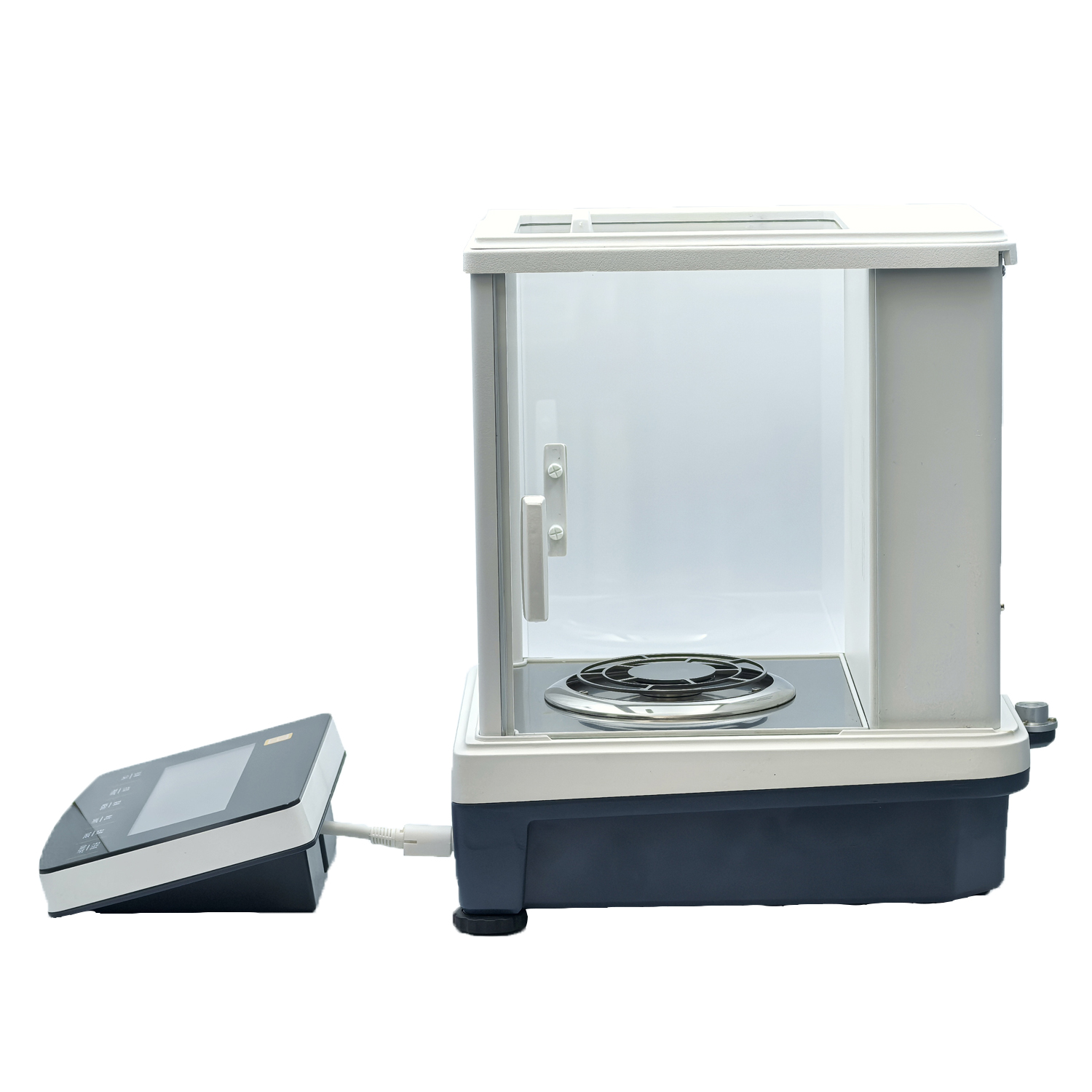

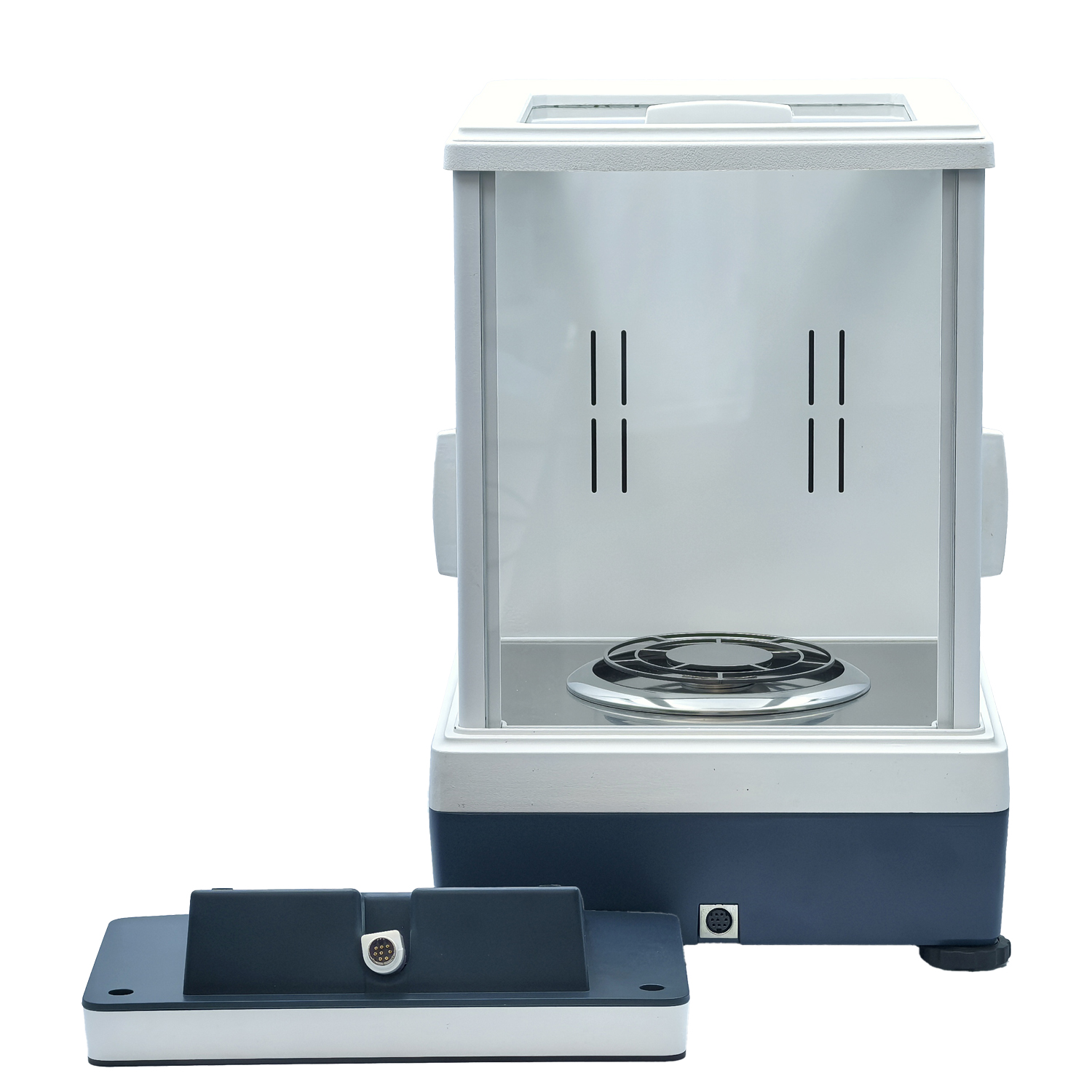

micro analytical balance 0.01mg 0.1mg Double range 120g 200g 51g 81g

//www.wantbalance.com/uploadfiles/128.1.164.27/webid1958/source/202601/6720417678411096.jpg

micro analytical balance 200g 51g 0.01mg 0.1mg Double range

外校型号	WT1035	WT1055	WT1085	WT2035	WT2055	WT2085	WT105	WT125
内校型号	WT1035N	WT1055N	WT1085N	WT2035N	WT2055N	WT2085N	WT105N	WT125N
称量范围	120g/31g	120g/51g	120g/81g	220g/31g	220g/51g	220g/81g	100g	120g
读取精度	0.1mg/0.01mg						0.01mg	0.01mg
稳定时间	约2秒/3秒						约3秒	约3秒
预热时间	30-60分钟						30-60分钟	30-60分钟
称量单位	g/oz/ct/mg						g/oz/ct/mg	g/oz/ct/mg
称量的最小称重	0.1mg/0.01mg						0.01mg	0.01mg
重复性	±0.1mg/±0.03mg						±0.03mg	±0.03mg
线性误差	±0.2mg/±0.05mg ±0.1mg/±0.05mg						±0.05mg	±0.05mg
输出接口	RS232标配 / USB 标配
秤盘尺寸	Φ90mm
包装尺寸	内箱:430x320x415mm 外箱:490x380x485mm
净重	6280g
电源	AC110V-240V

外校型号	WT124	WT224	WT324		WT424	WT524
内校型号	WT124N	WT224N	WT324N		WT424N	WT524N
称量范围	0-120g	0-220g	0-320g		0-420g	0-520g
读取精度	0.1mg
稳定时间	约1.5秒		约2秒
预热时间	30-60分钟
称量单位	g/oz/ct/mg
称量的最小称重	0.1mg
重复性	±0.1mg			±0.15mg
线性误差	±0.2mg			±0.3mg
输出接口	RS232标配 / USB 标配
秤盘尺寸	Φ90mm
包装尺寸	内箱:430x320x415mm 外箱:490x380x485mm
净重	6280g
电源	AC110V-240V

Inquire Now

micro analytical balance 200g 51g 0.01mg 0.1mg Double range

外校型号	WT1035	WT1055	WT1085	WT2035	WT2055	WT2085	WT105	WT125
内校型号	WT1035N	WT1055N	WT1085N	WT2035N	WT2055N	WT2085N	WT105N	WT125N
称量范围	120g/31g	120g/51g	120g/81g	220g/31g	220g/51g	220g/81g	100g	120g
读取精度	0.1mg/0.01mg						0.01mg	0.01mg
稳定时间	约2秒/3秒						约3秒	约3秒
预热时间	30-60分钟						30-60分钟	30-60分钟
称量单位	g/oz/ct/mg						g/oz/ct/mg	g/oz/ct/mg
称量的最小称重	0.1mg/0.01mg						0.01mg	0.01mg
重复性	±0.1mg/±0.03mg						±0.03mg	±0.03mg
线性误差	±0.2mg/±0.05mg ±0.1mg/±0.05mg						±0.05mg	±0.05mg
输出接口	RS232标配 / USB 标配
秤盘尺寸	Φ90mm
包装尺寸	内箱:430x320x415mm 外箱:490x380x485mm
净重	6280g
电源	AC110V-240V

外校型号	WT124	WT224	WT324		WT424	WT524
内校型号	WT124N	WT224N	WT324N		WT424N	WT524N
称量范围	0-120g	0-220g	0-320g		0-420g	0-520g
读取精度	0.1mg
稳定时间	约1.5秒		约2秒
预热时间	30-60分钟
称量单位	g/oz/ct/mg
称量的最小称重	0.1mg
重复性	±0.1mg			±0.15mg
线性误差	±0.2mg			±0.3mg
输出接口	RS232标配 / USB 标配
秤盘尺寸	Φ90mm
包装尺寸	内箱:430x320x415mm 外箱:490x380x485mm
净重	6280g
电源	AC110V-240V

Inquire Now

Product Detail

Detailed parameter table for WT series balance
Model（N-Internal Cal）	WT1035/WT1035N	WT1055/WT1055N	WT1085/WT1085N	WT2035/WT2035N	WT2055/WT2055N	WT2085/WT2085N	WT105/WT105N	WT125/WT125N
Input power supply	AC220V	AC220V	AC220V	AC220V	AC220V	AC220V	AC220V	AC220V
Frequency	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
Power W	10W	10W	10W	10W	10W	10W	10W	10W
Class	Ⅰ	Ⅰ	Ⅰ	Ⅰ	Ⅰ	Ⅰ	Ⅰ	Ⅰ
Weighing Rang（g）	0-120/0-31	0-120/0-51	0-120/0-81	0-200/0-31	0-200/0-51	0-200/0-81	0-100	0-120
Capacity（g）	120/31	120/51	120/81	200/31	200/51	200/81	100	120
Mini weighing（g）	0.01/0.001	0.01/0.001	0.01/0.001	0.01/0.001	0.01/0.001	0.01/0.001	0.001	0.001
Verification division（g）	0.001/0.0001	0.001/0.0001	0.001/0.0001	0.001/0.0001	0.001/0.0001	0.001/0.0001	0.0001	0.0001
Indication division（g）	0.0001/0.00001	0.0001/0.00001	0.0001/0.00001	0.0001/0.00001	0.0001/0.00001	0.0001/0.00001	0.00001	0.00001
Tare range(g)	0-120/0-31	0-120/0-51	0-120/0-81	0-200/0-31	0-200/0-51	0-200/0-81	0-100	0-120
Repeatability error(mg)	≤±0.1/≤±0.03	≤±0.1/≤±0.03	≤±0.1/≤±0.03	≤±0.1/≤±0.03	≤±0.1/≤±0.03	≤±0.1/≤±0.03	≤±0.03	≤±0.03
Linearity error(mg)	≤±0.2/≤±0.0.3	≤±0.2/≤±0.0.3	≤±0.2/≤±0.0.3	≤±0.2/≤±0.0.3	≤±0.2/≤±0.0.3	≤±0.2/≤±0.0.3	≤±0.0.3	/≤±0.0.3
Stability time（s）	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second
Minimum for counting	≥Mini Weighing	≥Mini Weighing	≥Mini Weighing	≥Mini Weighing	≥Mini Weighing	≥Mini Weighing	≥Mini Weighing	≥Mini Weighing
Reference for counting	10 pcs	10 pcs	10 pcs	10 pcs	10 pcs	10 pcs	10 pcs	10 pcs
Single/Dual Range	Dual 120g0.1mg/31g0.01mg	Dual 120g0.1mg/51g0.01mg	Dual 120g0.1mg/81g0.01mg	Dual 200g0.1mg/31g0.01mg	Dual 200g0.1mg/51g0.01mg	Dual 200g0.1mg/81g0.01mg	Single，100g0.01mg	Single，120g0.01mg
Calibation weight（g）	100	100	100	100	100	100	100	100
Linearity CAL point(g)	20,50,100,120	20,50,100,120	20,50,100,120	50,100,150,200	50,100,150,200	50,100,150,200	20.50.100	20.50.100.120
N.W.（g）	6280	6280	6280	6280	6280	6280	6280	6280
Size（L×W×H mm）	403220310	403220310	403220310	403220310	403220310	403220310	403220310	403220310
Packing Size（L×W×H mm）	490380485	490380485	490380485	490380485	490380485	490380485	490380485	490380485
Display	VA LCD	VA LCD	VA LCD	VA LCD	VA LCD	VA LCD	VA LCD	VA LCD
Integral(s)	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second	≤3 Second
Units	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized	g，mg，oz，ct/Customized
Computer/printer functions	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Pan size mm	φ90	φ90	φ90	φ90	φ90	φ90	φ90	φ90
Pan material	SS 304	SS 304	SS 304	SS 304	SS 304	SS 304	SS 304	SS 304
RS232	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Under hook	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Draft shield（L×W×H mm）	273210215	273210215	273210215	273210215	273210215	273210215	273210215	273210215
Keypad material	Acrylic	Acrylic	Acrylic	Acrylic	Acrylic	Acrylic	Acrylic	Acrylic
Body material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Base material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Foot material	ABS Plastics	ABS Plastics	ABS Plastics	ABS Plastics	ABS Plastics	ABS Plastics	ABS Plastics	ABS Plastics
